CPR one way valve clamshell mask

CPR one way valve clamshell mask

A pocket mask, or mouth to mouth rescue mask or CPR resuscitation mask, is a mask used to deliver rescue breaths during cardiopulmonary resuscitation.

Product Description

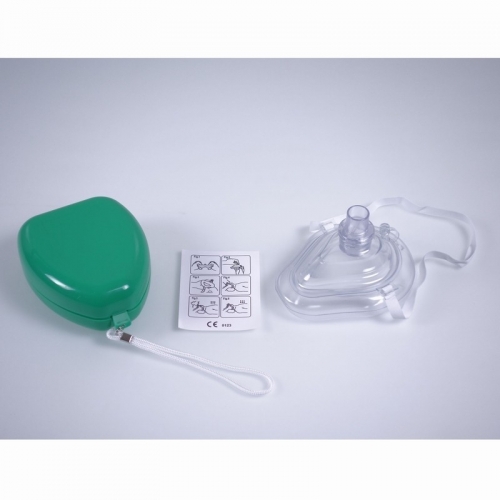

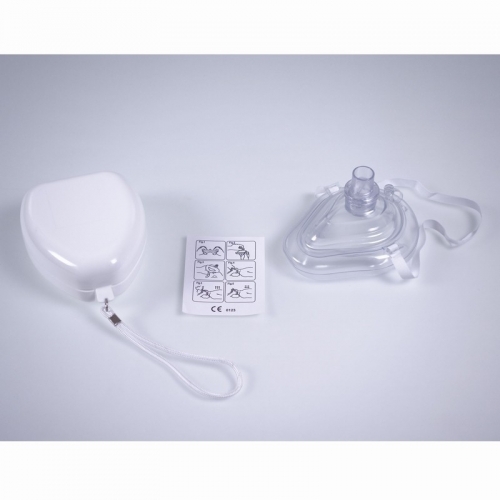

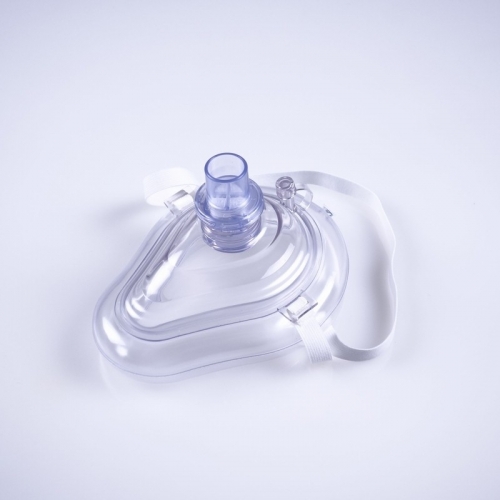

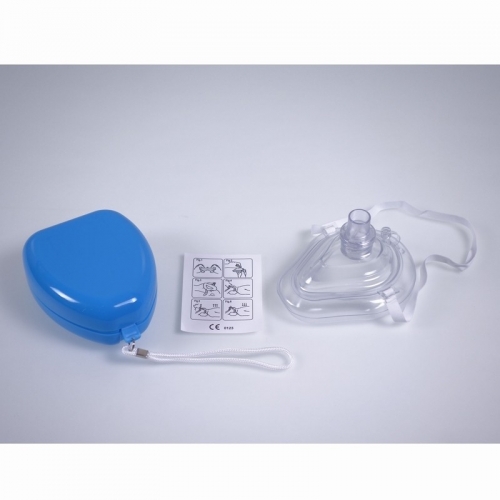

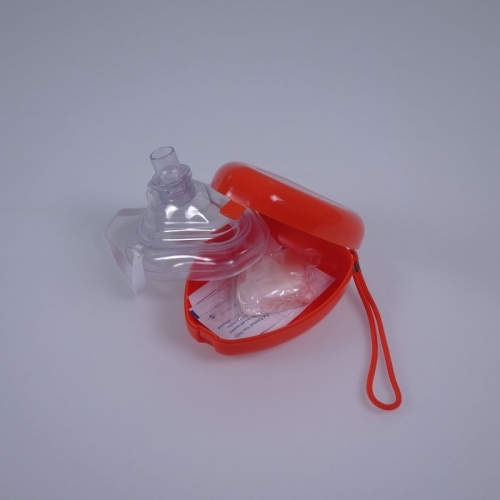

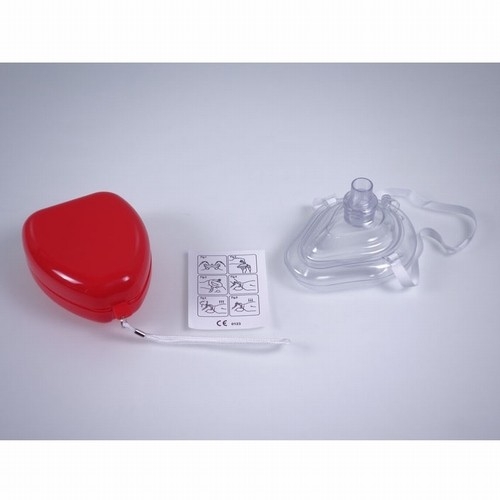

Foldable cushion mask with oxygen port, one-way valve with filter and elastic head strap

Available accessory: alcohol pad, pvc glove

Colorful case with string

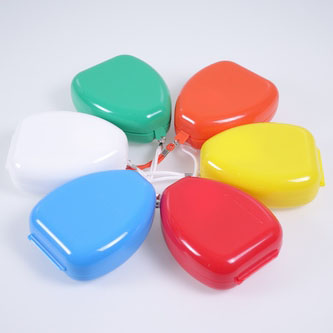

Optional colors for case: red/white/yellow/orange/green/blue/custom colors

Size: adult

Specification

Dimensions: (128mm x 101mm x 85mm)

Inspiratory resistance: ＜5 cmH2O

Expiratory resistance：＜5 cmH2O

Operation Temperature: -18℃~ 40℃

Storage Temperature: -30℃ ~ 50℃

Storage relative humidity: <85%

· NON-STERILE

· Latex & Phthalates free

Steps to Save Life using CPR Resuscitation Mask

A. Put on the protective gloves if available. Unfold mask and check that filter of mask is firmly in place.

B. For adult and pediatric: Place rim of the mask between lower lip and chin. Position “nose” over nose.

C. For Infant: Reverse mask direction, so nose area is under the chin.

D. Seal as illustrated and blow slowly into one-way valve until chest rises.

E. Remove mouth. Allow patient to exhale. Repeat as CPR guidelines.

    (Note: If patient vomits, remove mask and clear patient’s airway.)

F. Use with oxygen( if necessary): Attach the oxygen tubing to the optional oxygen port(1) and set the flow rate. If the patient is spontaneously breathing, use the head strap to position the Mask on the patient’s face. If the patient is NOT breathing, begin mouth to mask ventilation immediately.

Our Services

Customized label, white-black or colorful printing

Silk printing custom info on case directly with MOQ

Packaging & Shipping

Each case includes one CPR mask with/without accessory of alcohol pad/PVC glove

60pcs/carton, carton size 45X36X31cm, 10KGS/carton

Sea/air shipment, domestic delivery available

Application Field

First aid, emergency, medical training lesson

Company Information

Xiamen Winner is a professional supplier of first-aid & anesthesia products like manual resuscitator, face masks, air splints, CPR mask and extrication collar.We have our own factory in Xiamen and it operates under ISO 13485:2003-, ISO 9001:2000- and ISO 10993-4:2002- certified management systems and all of our products carry CE marks.

FAQ

Who can do CPR with Winner CPR mask to save life?

Winner CPR disposable mask should be used only by persons who have received adequate medical training.
